Kool Koat Turn-Key Powder System: 4x6x10 Oven, 4x7x4 Booth, Kool Koat 3.0 DPW



Kool Koat manufactures a full line of American-Made industrial batch ovens and powder spray booths ideal for powder coating, heat treating, composite curing, and more. Kool Koat ovens are economically efficient systems equipped to quickly reach and maintain even cure temperatures, from front to back, throughout your curing process.

Our innovative engineers have created a unique system that can be easily expanded lengthwise. As your business grows, so can your oven and spray booth.

The quality of our Kool Koat ovens and spray booths surpasses the industry marketplace. Kool Koat uses premium materials and components throughout our systems. These systems are manufactured using 12, 16, and 18 gauge G90 galvanized US Steel which is precisely cut and bent with our state-of-the-art AMADA Laser and Brake Press. The electronic components throughout these systems are UL listed / UL Compliant for reliability. Contains 24V controls.

TURN-KEY PACKAGE INCLUDES:

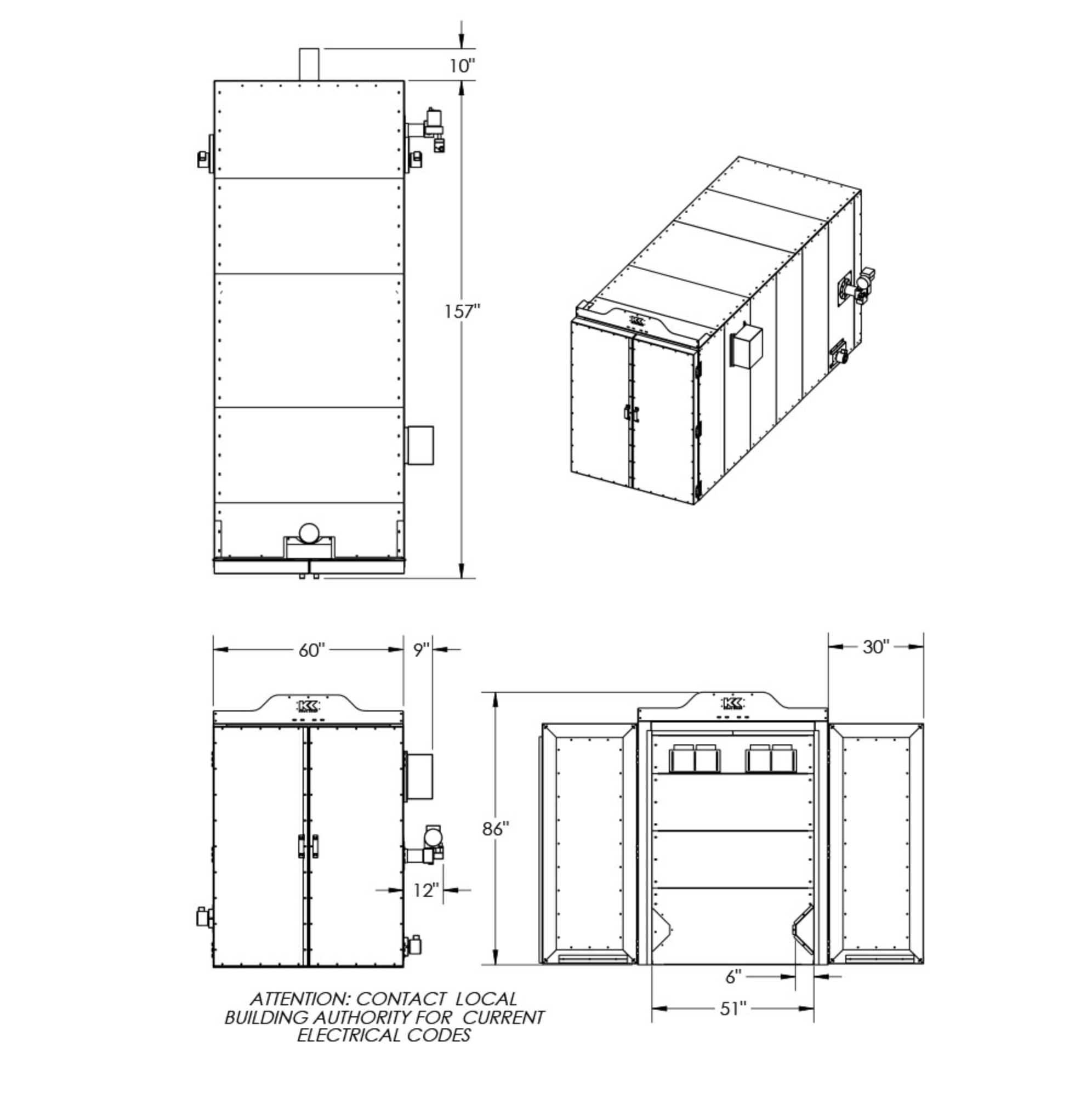

1 – 4’w X 6’h X 10’l Gas Fired Oven (Natural or LP)

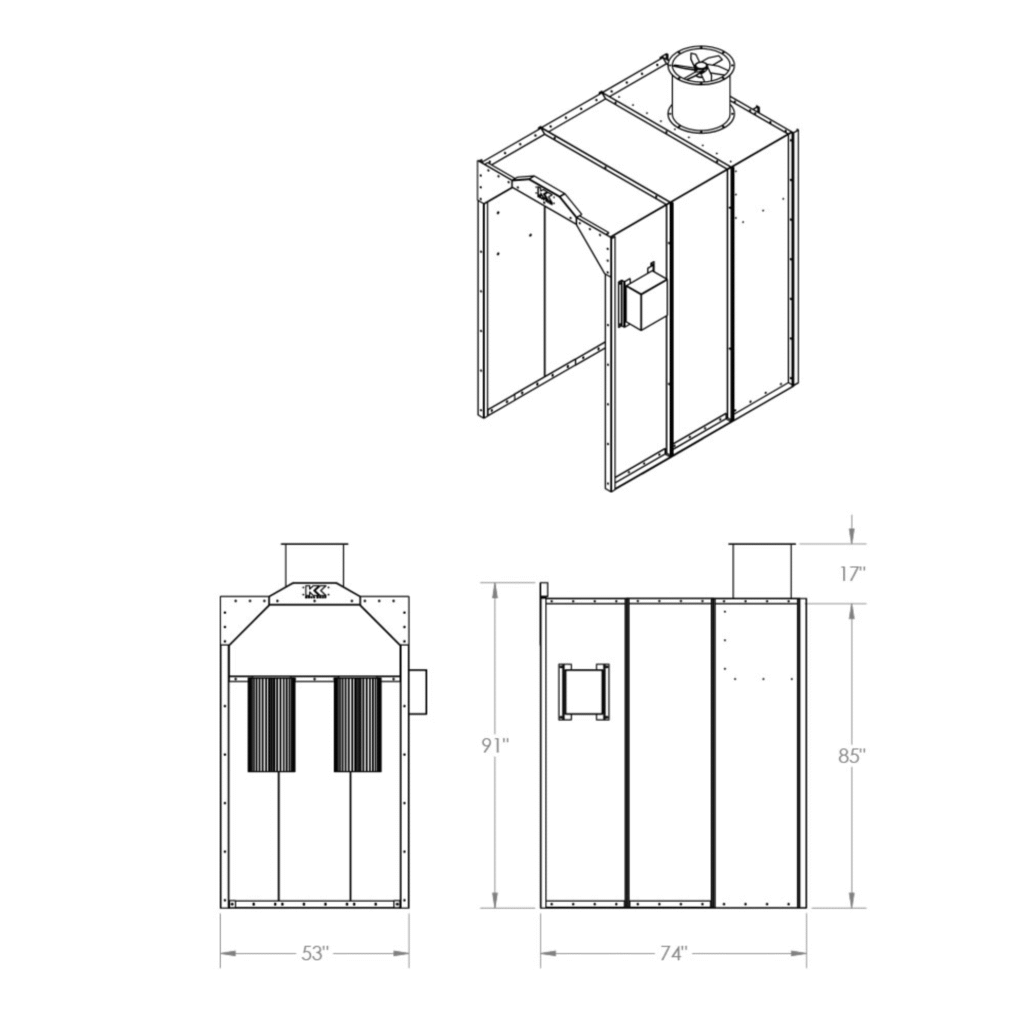

1 – 4’w X 7’h X 4’l Spray Booth

1 – Kool Koat 3.0 DPW Powder Coating Gun

BOOTH FEATURES

• Open-Face booth manufactured to be powder coating specific
• Industrial grade 16 and 18 gauge steel construction
• High Velocity Fan with 220V 1-phase motor
• Intelligent, Nut-and-bolt assembly enables on-site installation and customization where space may be limited
• Super-Bright LED Light Fixtures
• Reusable HEPA filters to eliminate airborne particles
• Filter Pulse System
• NFPA compliant
• All Hardware and Installation Manuals included
• NEMA1 UL listed control enclosure
• Proudly manufactured in the USA
• 1 Year Limited Warranty

OVEN FEATURES

• Powder-specific design.
• Premium G90 galvanized 16 gauge US Steel construction
• 4 inch wall thickness with two layers of 1250ºF high temperature insulation
• Unique riveted nut & bolt construction on walls that enables easy on-site installation, and can be removed for maintenance
• Available in LP or Natural Gas Configuration
• 250,000 BTU/hr burner output
• 110v – no special electrical service needed
• Reaches cure temperature in minutes and maintains consistent temp throughout oven space
• PID temperature regulation up to 500ºF
• NFPA compliant
• Explosion-proof door latches
• Flat, 12 gauge steel floor for rolling racks easily in or out of the oven.
• All hardware, fasteners, and manuals included
• Proudly manufactured in the USA
• 1 Year Limited Warranty

POWDER GUN FEATURES

• Adjustable KV (0-100) with DPW technology. Digital Pulse Wave (DPW) fights “Faraday Cage Effect” by adding enhanced pulsation 200 times a minute
• 2 independently regulated air outlets
• Switchable Display from KV to AMPS
• Integrated gauge powder feed adjustment
• Secondary Air Feed adjustments for optional accessories like industrial hoppers, etc.
• Includes a standard 1″ nozzle, wide mouth multi-coat nozzle, flat spray nozzle.
• 4 conical nozzle tips: 16mm, 20mm, 24mm, 30mm.
• Includes (1) 1lb. Standard Hopper
• Includes all hoses and cables
• Proudly manufactured in the USA
• 1 year limited warranty
